In this virtual laboratory, we determine the current absorbed by a R-L load when it is supplied by a single-phase inverter operating in full-wave command. We determine the current provided by the source that supplies the inverter.

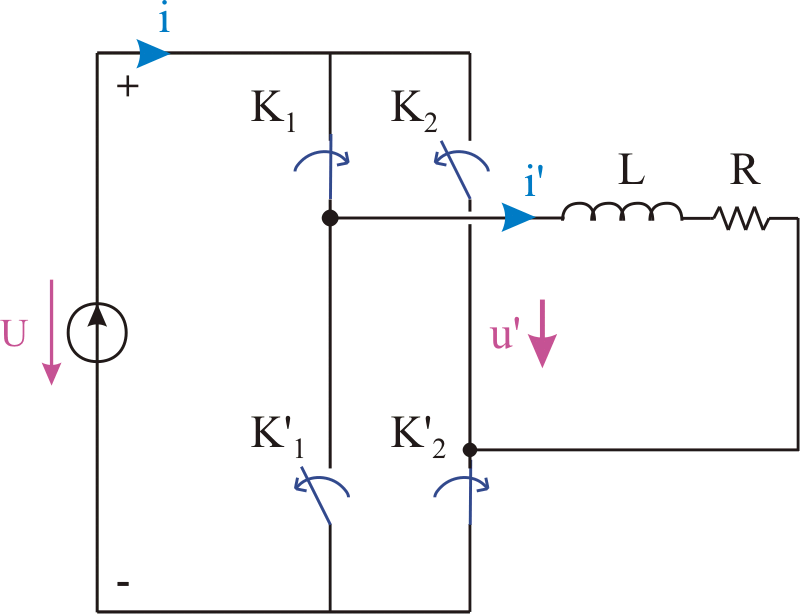

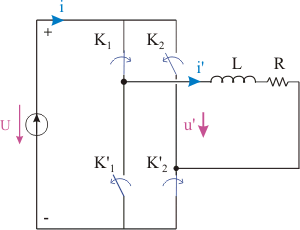

Figure 1

• prior knowledge: full wave command principle
• level: second cycle
• estimated time: 1/2 hour
• author: Francis Labrique
• realization: Sophie Labrique
• translation: Dorin Popescu, Sergiu Ivanov
